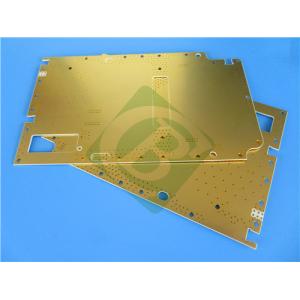

This premium 2-layer PCB utilizes Rogers RO3210 high-frequency material, specifically engineered for RF and microwave applications. This compact 16mm x 8mm board delivers exceptional signal integrity and thermal stability, making it ideal for demanding wireless communication systems, automotive radar, and satellite technologies.
The stack-up of this PCB consists of:
- Copper Layer 1: 35 μm (1oz)
- RO3210 Core: 0.762 mm (30 mil)
- Copper Layer 2: 35 μm (1oz)
PCB details
| Parameter | Specification |
| Base Material | RO3210 |
| Layer Count | 2 Layers |
| Board Dimensions | 16mm x 8mm (±0.15mm) |
| Minimum Trace/Space | 4/7 mils |
| Minimum Hole Size | 0.3mm |
| Blind Vias | No |
| Finished Board Thickness | 0.8mm |
| Finished Cu Weight | 1oz (1.4 mils) |
| Via Plating Thickness | 20 μm |
| Surface Finish | Immersion Gold |
| Top Silkscreen | White |
| Bottom Silkscreen | No |
| Top Solder Mask | Green |
| Bottom Solder Mask | No |
| Electrical Testing | 100% tested prior to shipment |
Features and Benefits of RO3210 Material
Dielectric Properties
RO3210 laminate exhibits a stable dielectric constant of 10.2 (±0.5), providing consistent signal performance for high-frequency applications requiring precise impedance control.
Low Loss Characteristics
With an ultra-low dissipation factor of just 0.0027 at 10GHz, RO3210 minimizes energy loss, making it ideal for demanding RF applications such as automotive radar and 5G systems.
Thermal Performance
The CTE values for RO3210 are optimized for reliability:
- X-axis: 13 ppm/°C
- Y-axis: 13 ppm/°C
- Z-axis: 34 ppm/°C
These metrics ensure excellent dimensional stability under thermal stress.
Additional Advantages
- High thermal conductivity (0.81W/mK)
- UL-94 V0 flammability rating
- Excellent surface smoothness for precision etching
- Woven glass reinforcement for mechanical rigidity
- Cost-effective solution for volume production
Typical Applications
The versatility of this PCB makes it suitable for various high-performance applications, including:
- Automotive Radar Systems: Collision avoidance and adaptive cruise control
- Satellite Antennas: GPS and direct broadcast receivers
- Wireless Infrastructure: 5G base stations and microstrip antennas
- Power Backplanes: High-current distribution systems
- Remote Monitoring: IoT and smart meter applications
- Defense Systems: Reliable performance in harsh environments
Compliance and Standards
This PCB adheres to IPC-Class-2 standards, ensuring that it meets industry benchmarks for reliability and quality. The artwork is provided in Gerber RS-274-X format, ready for seamless integration into manufacturing processes.
Global Availability
This PCB is available for worldwide shipping, with reliable delivery to manufacturers and engineers across all regions.
Conclusion
This 2-layer RO3210 PCB represents a premium solution for demanding high-frequency applications. Its exceptional material properties, precision engineering, and rigorous quality control make it an excellent choice for engineers developing cutting-edge RF systems. Our technical team is ready to assist with custom requirements - contact us today to discuss your specific application needs.
